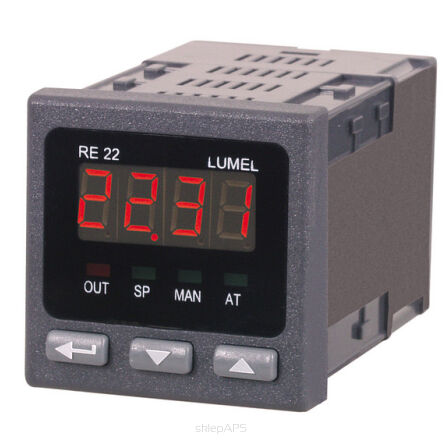

    Universal regulator RE22, universal current/voltage output, relay output, power supply 230V AC
    Universal regulator RE22, universal current/voltage output, relay output, power supply 230V AC

    Regulator RE22is designed for temperature controlling in the food and beverage, plastics industry, in industrial drying and as well as wherever it is necessary to stabilize temperature changes.

    Charakterystyka:
    • it works directly with temperature sensors of the resistive and thermoelectric type or with transmitter converts, which changes into standard signal.
    • input: universal for thermoresistors, thermocouple or for linear standard signal
    • relay output of no/nc configuration, which makes it possible to control the units of small power directly ,
    • control algorithm: on / off with hysteresis, PID,
    • manual setting of the parameters pid or by means of function of auto-adaptation (function of auto-adaptation makes possible to select setting of the parameters pid in order to ensure a fast adaptation of output signal),
    • possibilities of password protection against modification of the parameters
    • degree of protection of housing IP65
    • power supply: 230V AC, 110V AC, 24V AC,
    • dimenstions: 48 x 48 x 93mm.
    • the unit is designed for mounting .

    Wybrane parametry filtrów

    Electric power supply : 230 V AC
    Interfaces: no
    Input type: 0...5V, 0...10V, 0...20mA, 4...20mA
    Output type: relay
    Regulation options: PID
    }
